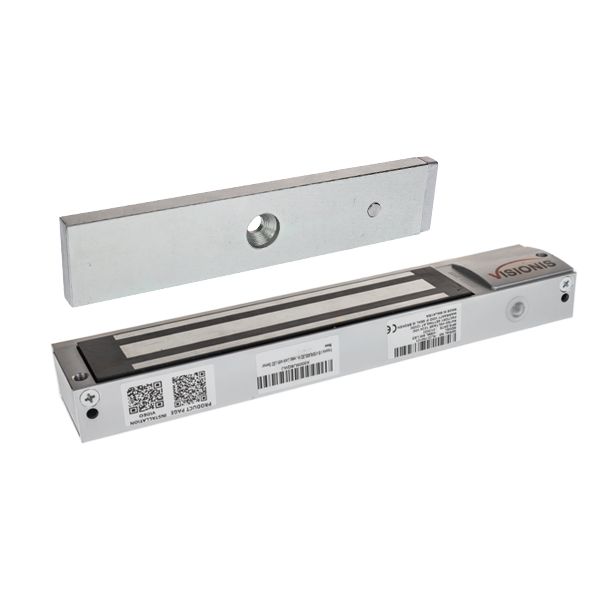

Visionis 600lb Indoor Magnetic Lock with LED Sensor for Door Access Control

• Voltage Input: 12 VDC / 24 VDC
• Has a holding force of 600Lbs (272Kg)
• Current draw of 12V / 500mA ; 24V / 250mA (±5%)
• Operating Temperature: 32 to 131°F (0 to 55°C)
• Hall Effect Contact: SPDT rated 2A at 24 VDC
• Magnetic Contact Rating: 28 VDC, 0.5A, 10W
• Anti-Rust Surface Treatment: Blue Zinc Plating
• Weight (Magnet): 1.1 kg (±1%)
• Dimensions: Magnet - (L)250x(W)42x(T)25 mm Armature - (L)180x(W)38x(T)11 mm
• Delay time for power-ON is 0-18sec with LED indication
• Green/Red LED Indication for EM Lock Status
• Anodized aluminum housing suitable for wooden, metal, glass and fireproof doors.
