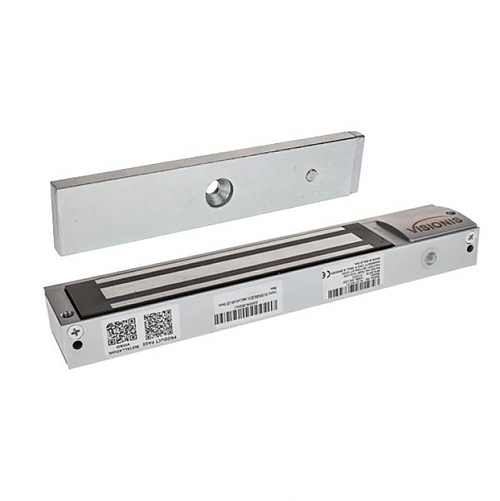

• Voltage Input: 12 VDC / 24 VDC
• Has a holding force of 600Lbs (272Kg)
• Current draw of 12V / 500mA ; 24V / 250mA (±5%)
• Operating Temperature: 32 to 131°F (0 to 55°C)
• Hall Effect Contact: SPDT rated 2A at 24 VDC
• Magnetic Contact Rating: 28 VDC, 0.5A, 10W
• Anti-Rust Surface Treatment: Blue Zinc Plating
• Weight (Magnet): 1.1 kg (±1%)
• Dimensions: Magnet - (L)250x(W)42x(T)25 mm Armature - (L)180x(W)38x(T)11 mm
• Delay time for power-ON is 0-18sec with LED indication
• Green/Red LED Indication for EM Lock Status
• Anodized aluminum housing suitable for wooden, metal, glass and fireproof doors.

• Suitable for wooden, metal, or PVC doors
• Holding strength: 770lbs (350kg)
• Dual modes: fail safe (locked with power) and fail secure (unlocked with power)
• Voltage: 12 VDC

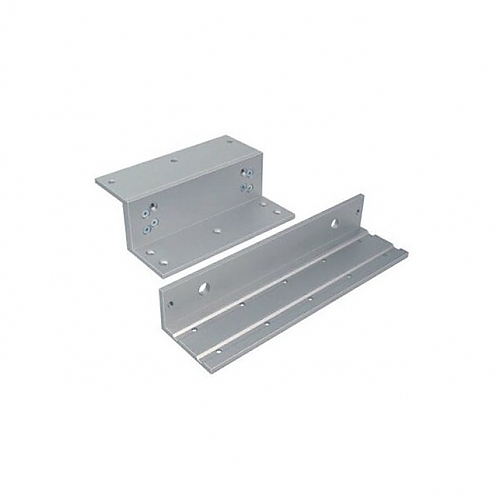

Unlock unparalleled security and peace of mind with our L and Z Mounting Brackets, expertly crafted for use with 1200lbs Electromagnetic Locks.

Designed for robust durability and exceptional compatibility, these mounting brackets offer the ultimate solution for securing high-traffic doors and gates.

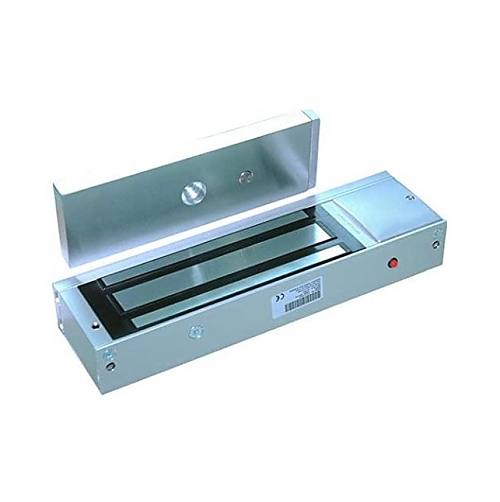

• 12 VDC or 24 VDC dual voltage
• Low current consumption
• Reliable holding force of up to 1200lbs
• Hall effect sensor monitoring output
• Green/Red LED Indication
• Built-in magnetic contact for door status monitoring
• Cosmeticize anodized aluminum casing
• Surge and spike protection PCB
• Anti-tamper jam nuts
• Compact size for small doors, cabinets, etc.
• Anti-residual magnetism kick-off button

• Fail Safe or Fail Secure Mode Adjustable

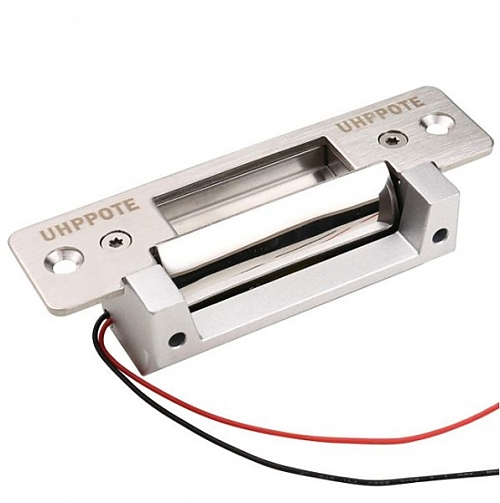

• Holding Force: 1000kg / 2204lb
• Designed for Metal Frame: drill a hole, then install it directly

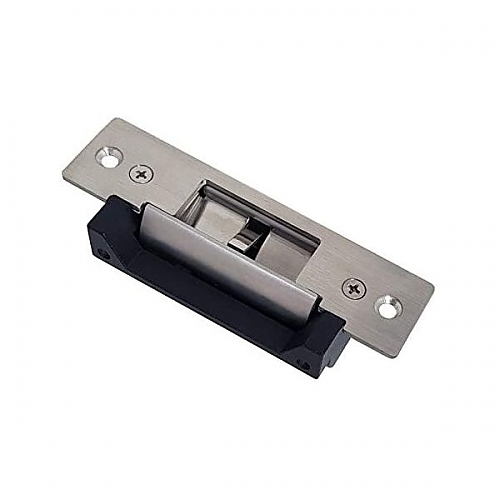

• Strike lock needs to work with mechanical lock or knob lock which you need to buy separately

• 12 VDC or 24 VDC dual voltage
• Low current consumption
• Reliable holding force of up to 1200lbs
• Hall effect sensor monitoring output
• Green/Red LED Indication
• Built-in magnetic contact for door status monitoring
• Cosmeticize anodized aluminum casing
• Surge and spike protection PCB
• Anti-tamper jam nuts
• Compact size for small doors, cabinets, etc.
• Anti-residual magnetism kick-off button

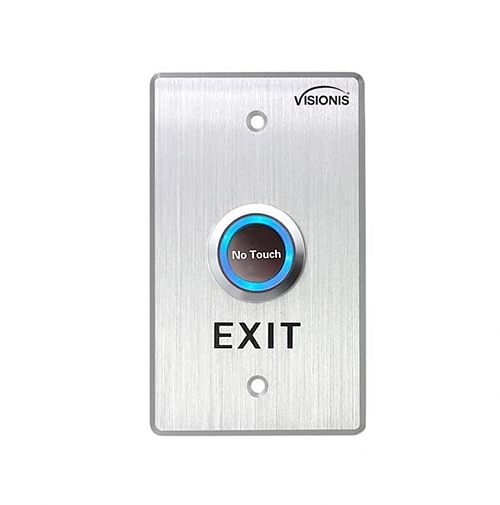

With our line of No Touch exit button you no longer have to physically push a button to exit. All you have to do is wave your hand and the door will open. This No Touch exit button also includes a delay feature to up to 22 seconds.

Door Release Exit Buttons are the most common part in Access Control systems. They are often used in all types of applications such as in Offices, Banks, Gas Stations, Department Stores and much more.

The VISIONIS Request-to Exit Buttons may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or Electric strike Device.

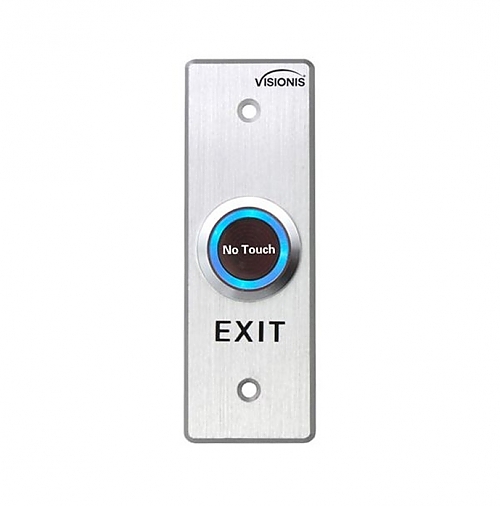

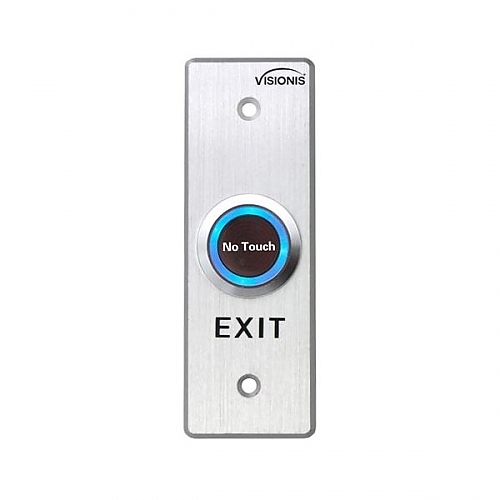

The VISIONIS VIS-7028 is a stainless steel no touch infrared request to exit button with time delay slim size for door access control systems. This Request-to Exit Button may be connected to the request-to-exit input of any access control device or directly connected to an electromagnetic lock or electric strike device.

The VISIONIS line of door release exit buttons provide a reliable source of egress access controlled opening devices in residential, commercial and Industrial locations. They fit several applications needs such as in Offices, Banks, Gas Stations, Department Stores and much more.

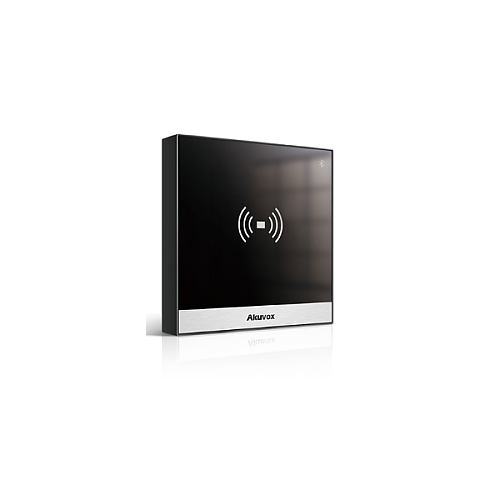

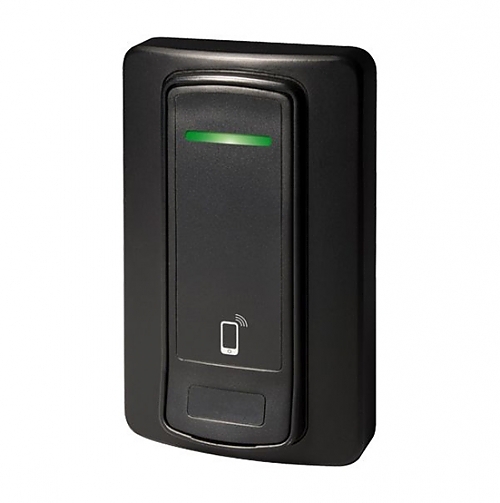

• Card reader: BLE 5.0, NFC, and 125kHz and 13.5 MHz cards
• Output Relay: output relay for the door opener
• Interface: Wiegand x 1, input port x 2
• Capacity: 20,000 cards and 100,000 event logs
• 802.3af Power-over-Ethernet
• Tamper proof alarm
• Mounting bracket included

• Environment: Indoor
• 1 button, for pairing
• Plastic casing
• Dimensions: 31x56x24mm
• Fits in standard installation boxes
• Relay Out: 1
• RS485: 1
• Input: 1
• Indicator: 2
• Power In: 1, 12V/100mA (Min.)
• Working Humidity: 10~90%
• Working Temperature: -20°C ~ +60°C

• Technology: MIFARE DESFire EV2, Proximity
• Security level: EAL 5+
• Memory size: 4 Kbytes
• Frequency: 125KHz, 13.56 MHz
• Read ranges: Up to 3"
• Temperature: -50°F – +160°F
• Material: PVC + PET
• Dimensions: 3.37 x 2.13 x 0.03"
• Country of origin: USA

In the box:

25 ADC-AC-CARD-50D4 Access Cards

• RF Technologies: 125 KHz, 13.56 MHz, NFC, Bluetooth Low Energy
• Reads: MIFARE DESfire EV1 & EV2, LEAF, FSK, and ASK proximity
• Input power: 5-16 VDC, 169 mA max
• Output: OSDP, Wiegand, accelerometer-based tamper detection
• Read ranges: EV1: 1.5", EV2: 2.5", 125 KHz up to 4"
• Temperature: -31°F – +151°F
• Operating humidity: 5 – 95% (non-condensing) RH
• Dimensions: 5.1 x 3.3 x 0.7"
• Weight: 10 oz
• Country of origin: USA
• Certifications: FCC, IC, CE, UL 294, EN 302291, EN 301489, EN 300330, EN 50130-4, IP55, BIS IS 13252

In the box:

ADC-AC-ET20 reader, installation guide, backplate, wall plate, #6 screws (x2), #4 screws (x4), #4-40 screw (x1), #4-40 pin-in-Torx T8 screw (x1)
